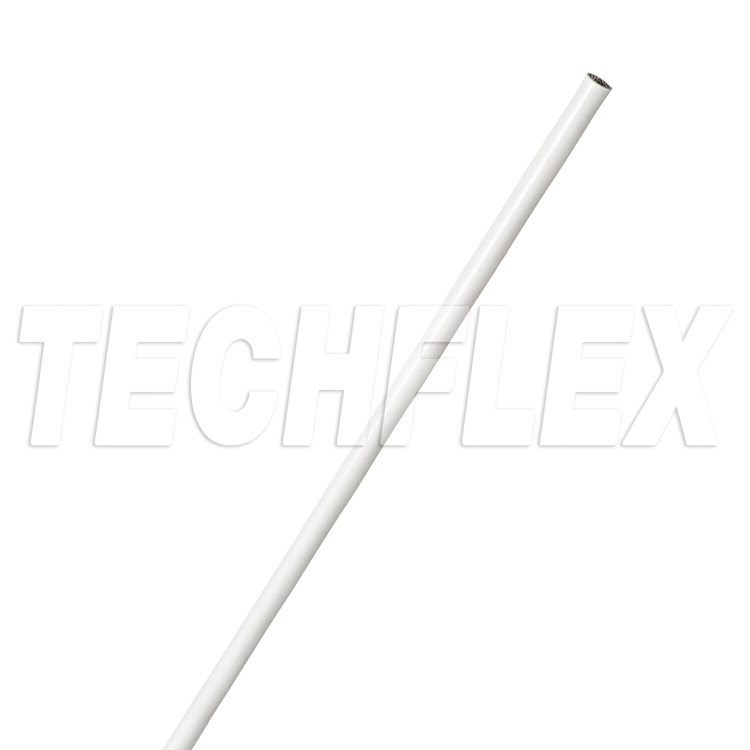

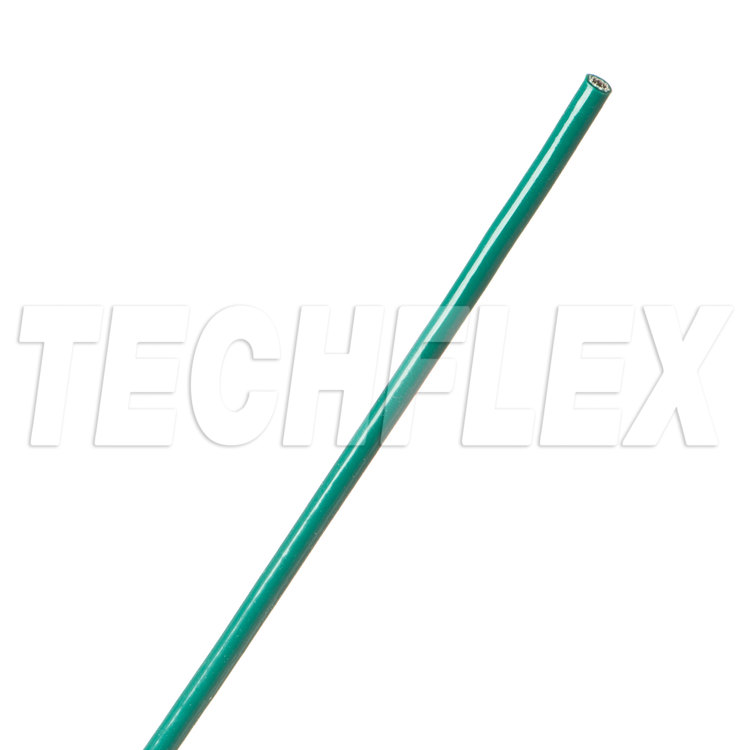

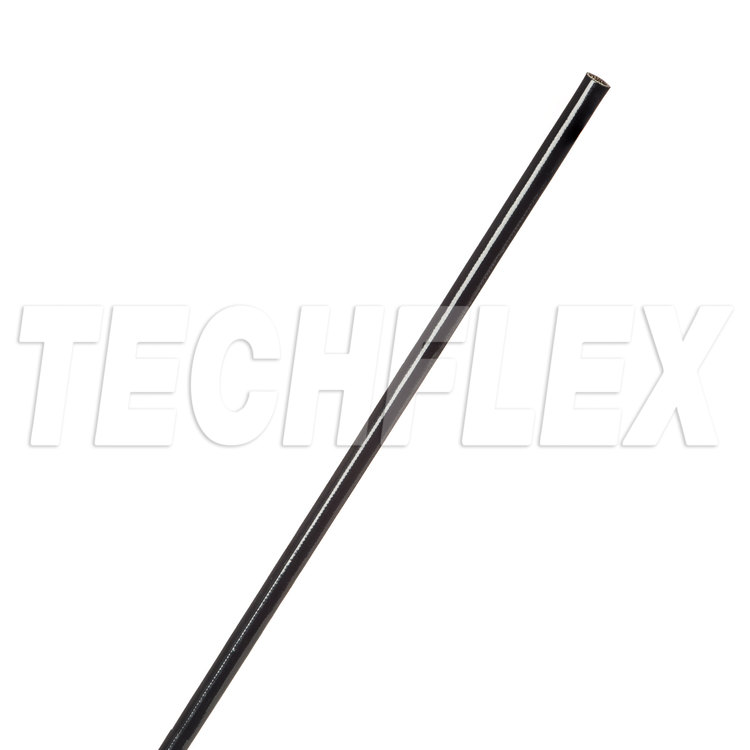

Vinyl Coated Fiberglass Sleeving Grade A
• Rated to 130°C class H
• Grade A (8,000 V) Mil-I-003190/2
• Cut-through and abrasion resistant
• Excellent low temp. flexibility

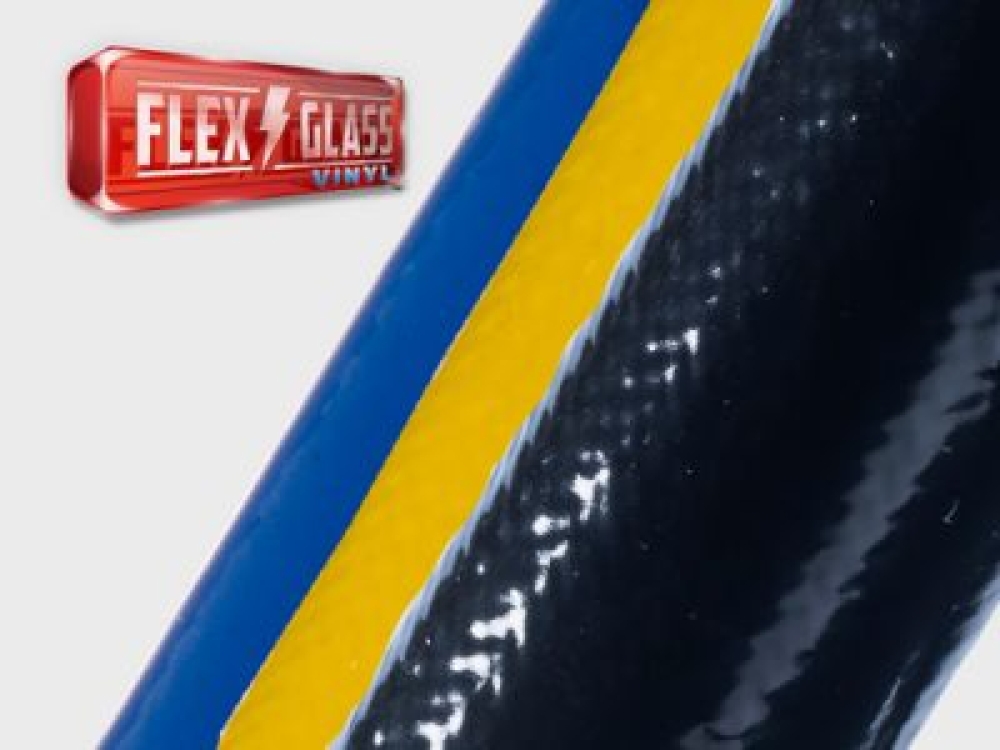

Vinyl Flex Glass sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a firmly bonded plasticzed polyvinylchloride film. This durable sleeving will withstand mechanical stress and holds it dielectric strength on all bends.
Vinyl Flex Glass is used for supplementary insulation on transformer, motor, generator, and resistor leads. Also other applications include television, radio, and other electric circuits where it can be pushed back to permit soldering. Highly reistant to acids and solvents, and will withstand tough assembly handling.
The Vinyl compound is designed for continuous operation at 130 °C temperatures, while providing excellent abrasion and cut-through resistance.
|
Artikel-
nummer
|
Durchmesser
Innen in mm
|
Spannungs-
festigkeit
|
Mini
Spool
|
Bulk
Spool
|
| |
|
|
|
|
|
VGAG.24
|
0,5 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.22
|
0,6 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.20
|
0,8 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.18
|
1,0 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.17
|
1,1 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.16
|
1,3 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.15
|
1,4 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.14
|
1,6 mm
|
8.000 V
|
76,2 m
|
152,4 m
|
|
VGAG.13
|
1,8 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.12
|
2,1 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.11
|
2,3 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.10
|
2,6 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.09
|
2,9 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.08
|
3,3 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.07
|
3,7 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.06
|
4,1 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.05
|
4,6 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.04
|
5,2 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.03
|
5,8 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.02
|
6,5 mm
|
8.000 V
|
30,5 m
|
76,2 m
|
|
VGAG.01
|
7,3 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGAG.00
|
8,4 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA0.38
|
9,5 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA0.44
|
11,1 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA0.50
|
12,7 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA0.63
|
15,9 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA0.75
|
19,1 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA0.88
|
22,2 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
|
VGA1.00
|
25,4 mm
|
8.000 V
|
15,2 m
|
30,5 m
|
