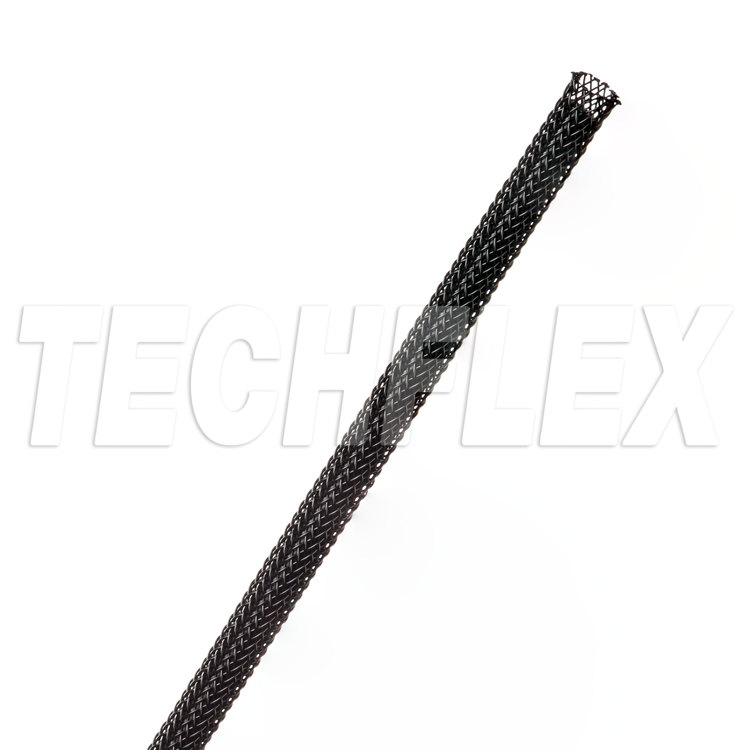

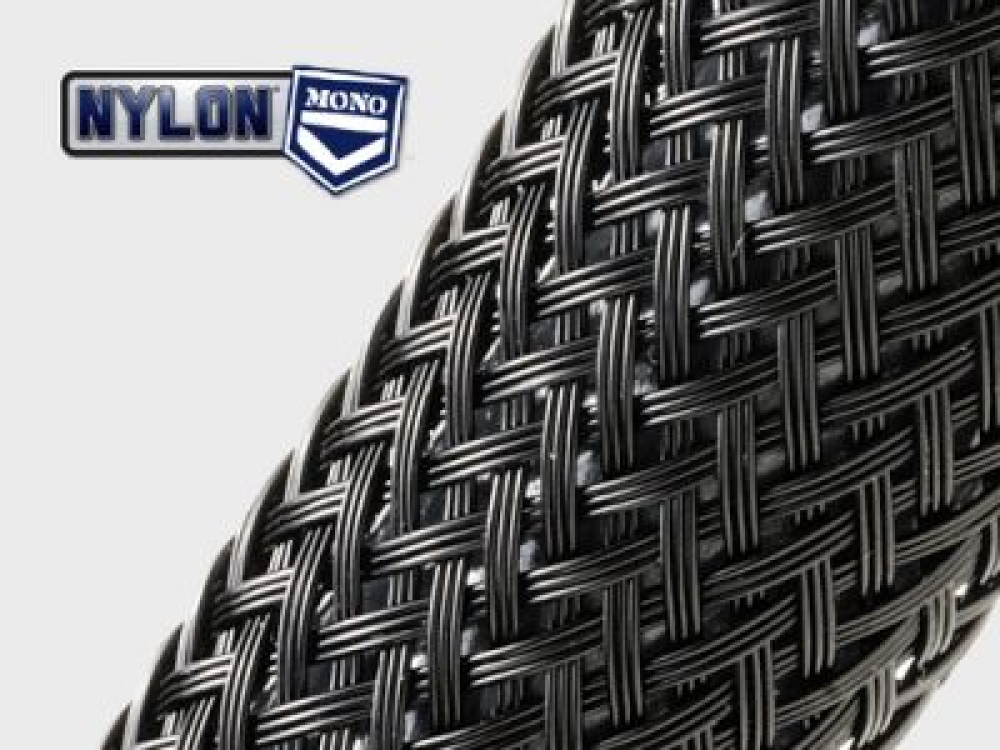

NYLON® MONOFILAMENT - Polyamid 6.6 (PA66) Abrasion-Resistant Braided Hose

Reliability Recognized Around the World

• Braided from 12 mil Nylon 6-6 Polyamide monofilament yarns
• Resists gasoline and engine chemicals
• Economical and easy to install
• Expands up to 150%
• Cut and abrasion resistant

Nylon Monofilament is commonly used in the automotive industry to protect hoses and wire harnesses from excessive wear. Nylon Monofilament’s tough characteristics can increase hose life up to 300 %. This lengthened life span is recognized in terms of reduced maintenance, a professional, attractive and durable appearance and greater customer satisfaction. With the additional protection that Nylon Monofilament provides, it pays for itself throughout the life of your product.

Nylon Monofilament is braided from 0,3 mm Nylon 6-6 Polyamide monofilament. The tight braid construction covers fully and provides excellent surface abrasion resistance for assemblies exposed to excessive wear. The smooth nylon fibers and tight construction also reduce abrasion damage caused by hoses and harnesses rubbing against the inside wall of the sleeving.
Nylon Monofilament resists all common automotive chemicals. It won’t rot or retain moisture.
Nylon Monofilament is available in Black.



Artikel- nummer	Durchmesser Innen in mm	Expansion min. / max.	Mini Spool	Bulk Spool
NYN0.13	3,2 mm	2,4 - 6,4 mm	68,6 m	304,9 m
NYN0.25	6,4 mm	3,2 - 9,5 mm	61,0 m	304,9 m
NYN0.38	9,5 mm	6,4 - 11,1 mm	38,1 m	152,4 m
NYN0.50	12,7 mm	9,5 - 19,1 mm	30,5 m	152,4 m
NYN0.63	15,9 mm	11,1 - 25,4 mm	30,5 m	152,4 m
NYN0.75	19,1 mm	12,7 - 31,8 mm	22,9 m	76,2 m
NYN1.00	25,4 mm	15,9 - 34,9 mm	15,2 m	76,2 m
NYN1.25	31,8 mm	19,1 - 38,1 mm	15,2 m	76,2 m
NYN1.50	38,1 mm	25,4 - 50,8 mm	15,2 m	61,0 m
NYN2.00	50,8 mm	38,1 - 76,2 mm	15,2 m	61,0 m
