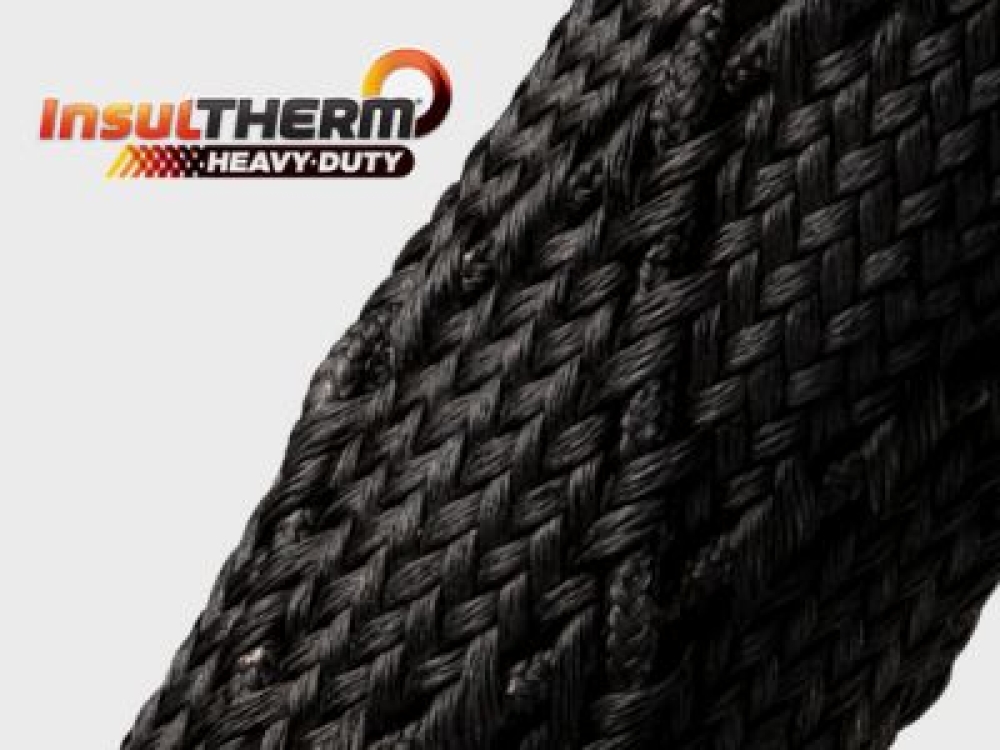

INSULTHERM® HEAVY DUTY - Thermal Insulated Heavy Duty Temperature Resistant Fiberglass Braided Sleeving

Resin Saturated Fiberglass Protects up to 650 °C

• Thermal insulation up to 650°C
• Fiberglass fabric protection for fuel and hydraulic lines
• Reduced fraying
• Permanent temperature range: -70°C to 650°C, melting point 1,120°C

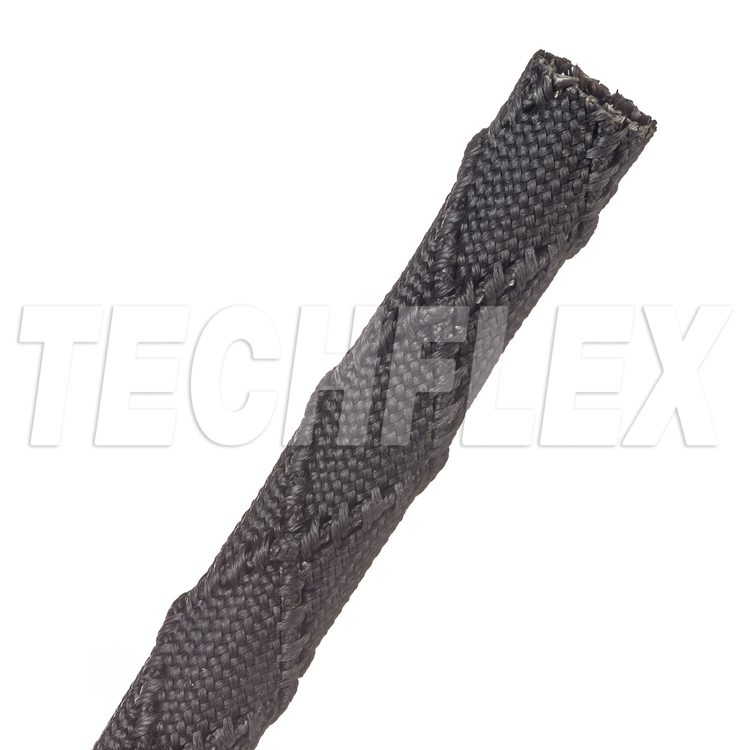

Insultherm Heavy Duty is a braided fiberglass sleeving made in a heavy wall construction with a high temp cord braided into the sleeving. Insultherm Heavy Duty is saturated with high temperature acrylic resins which adds rigidity and reduces fray when cut. The high temperature fiberglass cord braided into the sleeving adds significant abrasion protection and allows the sleeving to expand to much larger diameters, making it easier to apply over longer lengths.

Insultherm Heavy Duty is ideal heat protection for cables and hoses in a wide range of available sizes and will withstand 650 °C temperatures. This sleeving is designed to provide thermal insulation and protection for EGR tubes, fuel lines, hydraulic and industrial hose applications as well as many welding and automotive applications.
This product can also be produced in large flat sheets and supplied into a wrap with push button closure or stainless steel tie closures. The wraps make it ideal for thermal protection with a higher degree of abrasion protection. Please inquire about this special order.



Artikel- nummer	Durchmesser Innen in mm	Expansion min. / max.	Mini Spool	Bulk Spool
FGS0.50	12,7 mm	12,7 - 22,2 mm	15,2 m	61,0 m
FGS0.75	19,1 mm	19,1 - 69,9 mm	15,2 m	61,0 m
FGS1.00	25,4 mm	25,4 - 63,5 mm	15,2 m	61,0 m
FGS1.25	31,8 mm	31,8 - 85,7 mm	7,6 m	30,5 m
FGS1.50	38,1 mm	38,1 - 136,5 mm	7,6 m	30,5 m
