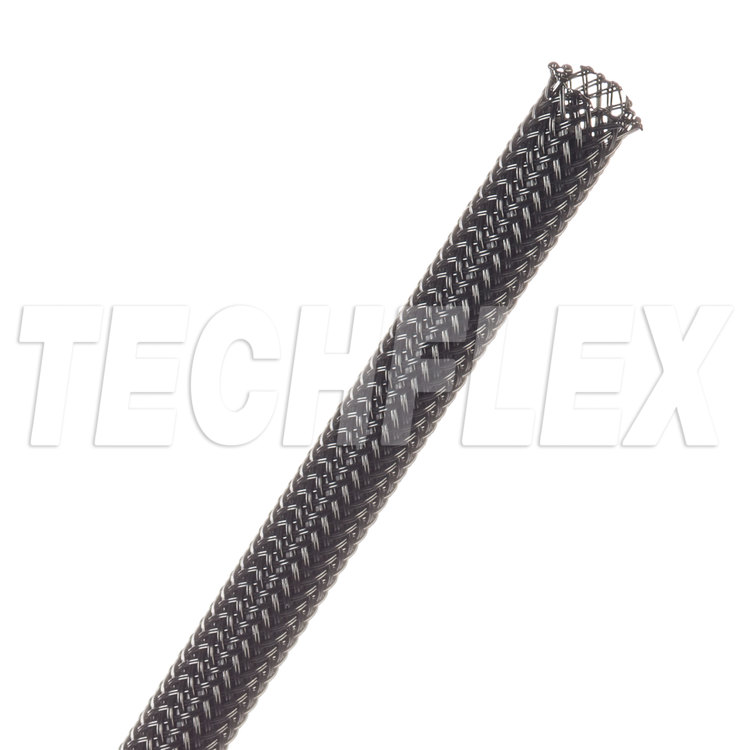

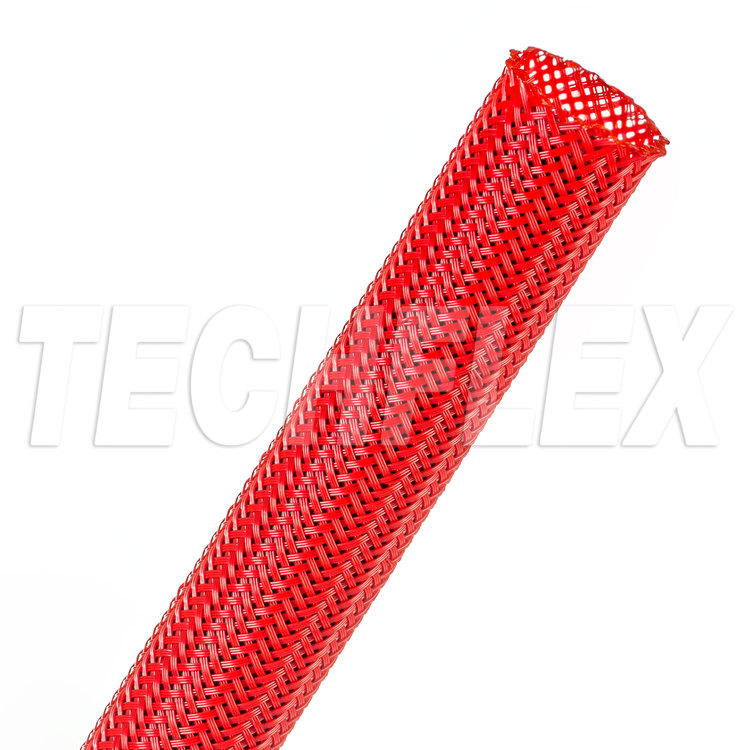

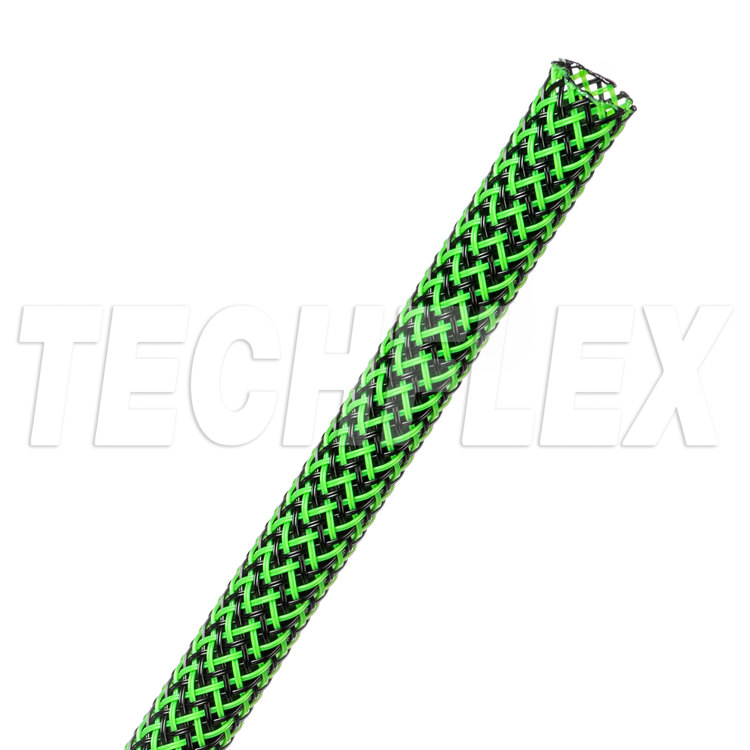

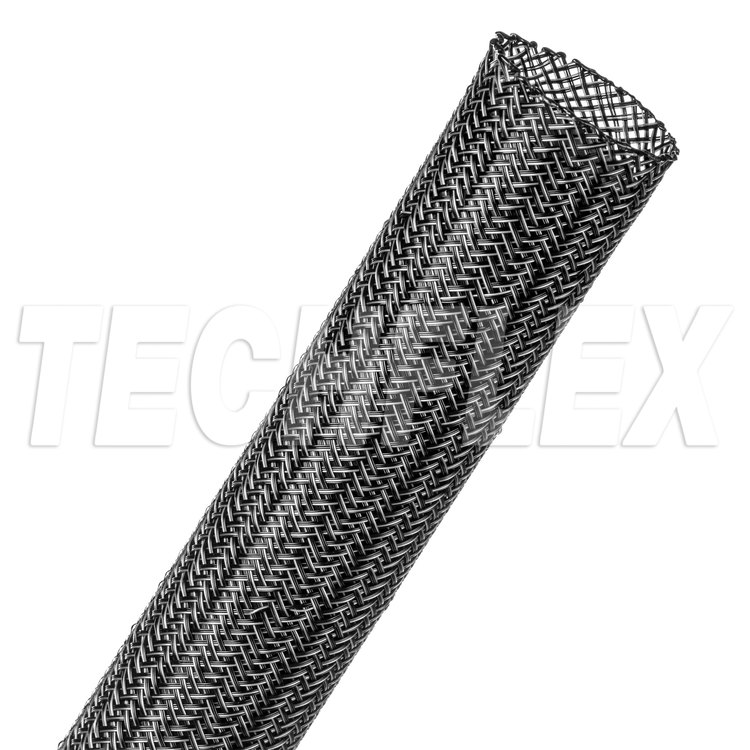

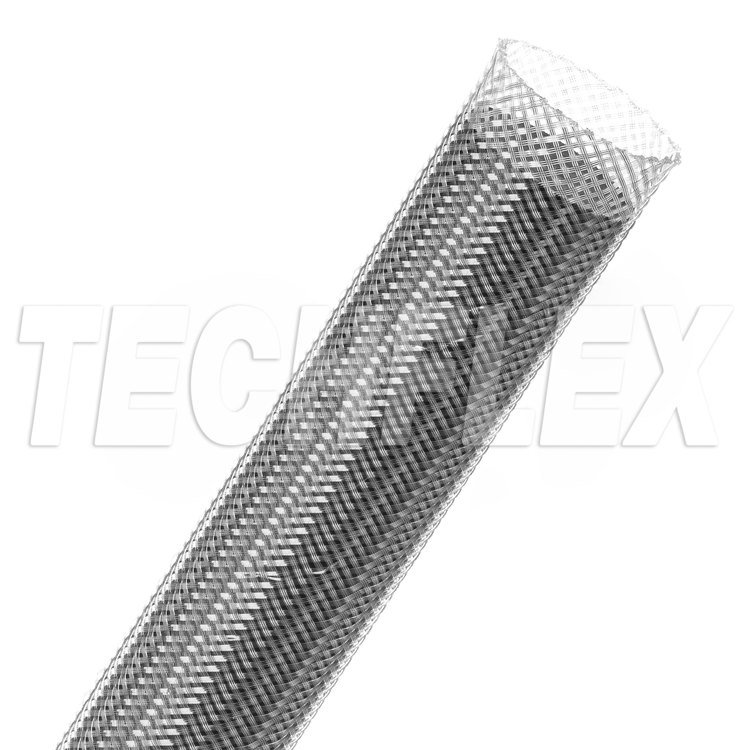

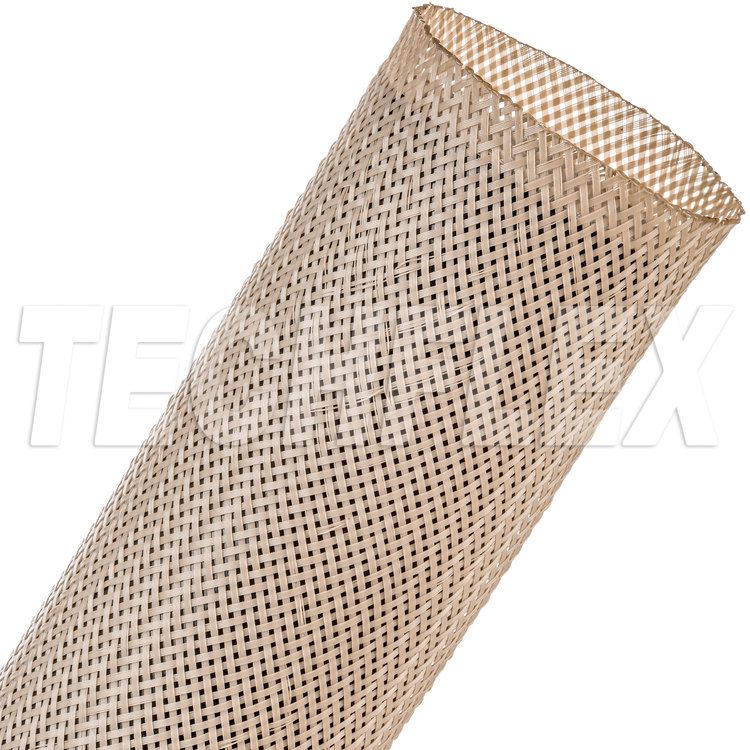

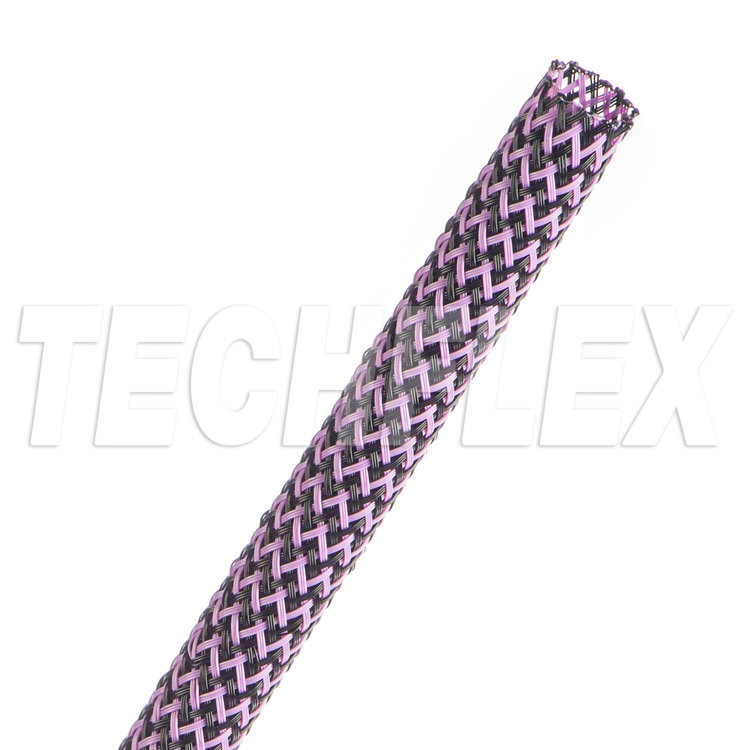

Tightly Braided for Extra Coverage and Protection
- Opaque cable protection with high coverage
- Stretchable, cut and abrasion-resistant conduit protection
- PET monofilament
- Permanent temperature range: -70°C to 125°C, melting point 250°C

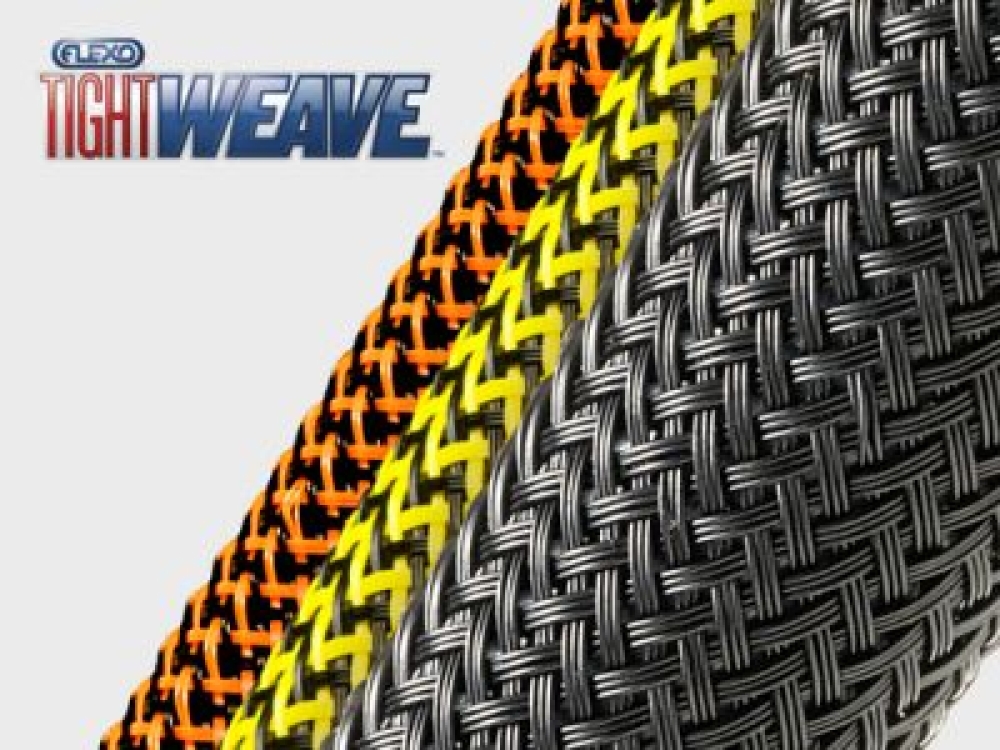

Flexo Tight Weave is designed for use in applications where a balance between economy and optimum coverage and abrasion resistance is required.
The tightly braided construction increases the coverage, wear factor and improves security in any type of harness or cable bundle.
Flexo Tight Weave provides substantially greater coverage and protection from abrasion than our standard Flexo PET sleeving.
|
Artikel-
nummer
|
Durchmesser
Innen in mm
|
Expansion
min. / max.
|
Mini
Spool
|
Bulk
Spool
|
| |
|
|
|
|
|
PTT0.13
|
3,2 mm
|
1,6 - 6,4 mm
|
68,6 m
|
304,9 m
|
|
PTT0.25
|
6,4 mm
|
4,4 - 8,7 mm
|
61,0 m
|
304,9 m
|
|
PTT0.31
|
7,9 mm
|
6,4 - 9,5 mm
|
61,0 m
|
304,9 m
|
|
PTT0.50
|
12,7 mm
|
8,7 - 15,9 mm
|
30,5 m
|
152,4 m
|
|
PTT0.75
|
19,1 mm
|
12,7 - 20,6 mm
|
22,9 m
|
76,2 m
|
|
PTT1.00
|
25,4 mm
|
15,9 - 28,6 mm
|
15,2 m
|
76,2 m
|
|
PTT1.25
|
31,8 mm
|
25,4 - 42,9 mm
|
15,2 m
|
76,2 m
|
|
PTT1.50
|
38,1 mm
|
28,6 - 50,8 mm
|
12,2 m
|
61,0 m
|
|
PTT1.75
|
44,5 mm
|
38,1 - 66,7 mm
|
9,1 m
|
61,0 m
|
|
PTT2.00
|
50,8 mm
|
44,5 - 79,4 mm
|
15,2 m
|
61,0 m
|
