The Future of Flame Resistant Sleeving is Here
- UL94, V-0 certified
- Combination of PPS & Peek
- Ideal for aerospace, telecommunications and military applications
- Permanent temperature range: -70°C to 200°C, melting point 285°C

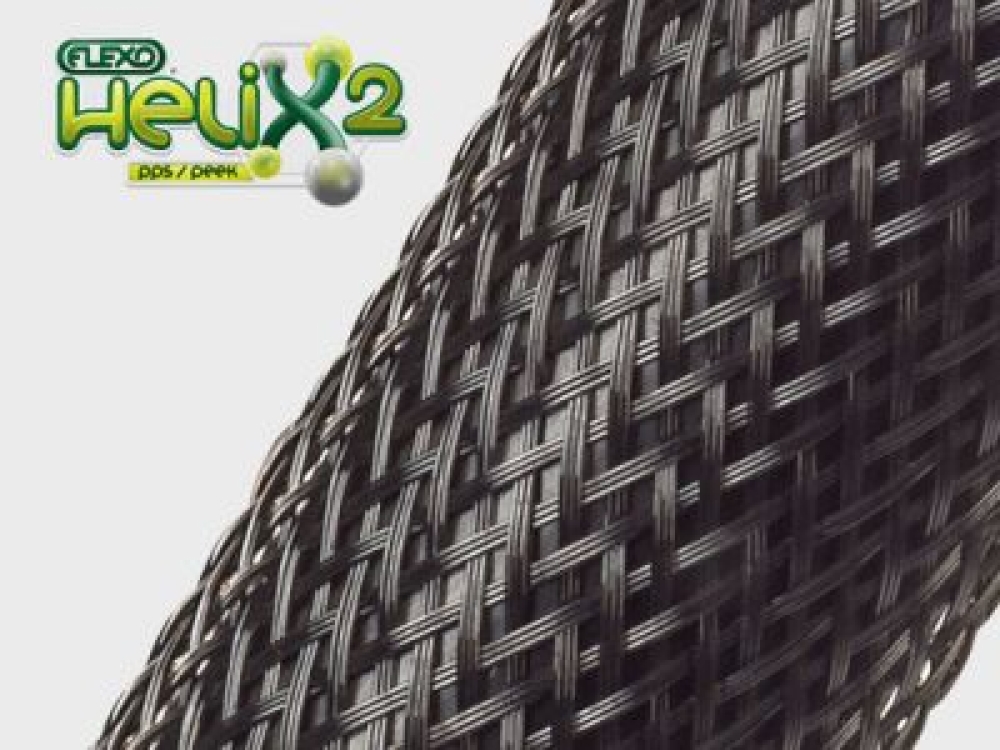

Flexo Helix2 - one highly advanced flame resistant expandable sleeving engineered with two highly advanced materials. Flexo HeliX2’s unique braid is comprised of 0,2 mm flame resistant PolyPhenylene Sulfide (PPS) monofilament fibers and 0,25 mm filaments of pure, unfilled PolyEtherEther-Ketone (PEEK) polymer making it one of the most advanced flame resistant braided sleeves on the market.
Flexo Helix2 is the perfect choice when high temperature, flame resistant wire harnessing and cable assemblies are imperative. It is lightweight, resistant to high heat, and essentially immune to chemicals and solvents.
Flexo Helix2 meets or exceeds many engineering standards including chemical resistance, high temperature stability, zero moisture absorption, dimensional stability, and ultra-low wear — making it ideal for aerospace, telecom, and military applications. This exclusive construction offers the broadest resistance to chemicals of any of our advanced engineering products resulting in resistance to all known solvents below 200 °C and being inert to steam, strong bases, fuels, and acids.
|
Artikel-
nummer
|
Durchmesser
Innen in mm
|
Expansion
min. / max.
|
Mini
Spool
|
Bulk
Spool
|
| |
|
|
|
|
|

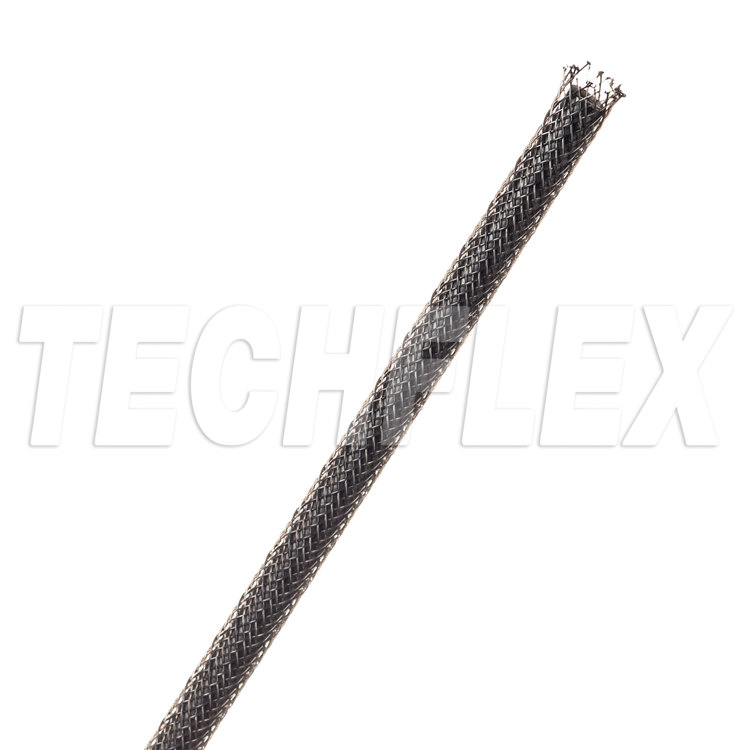

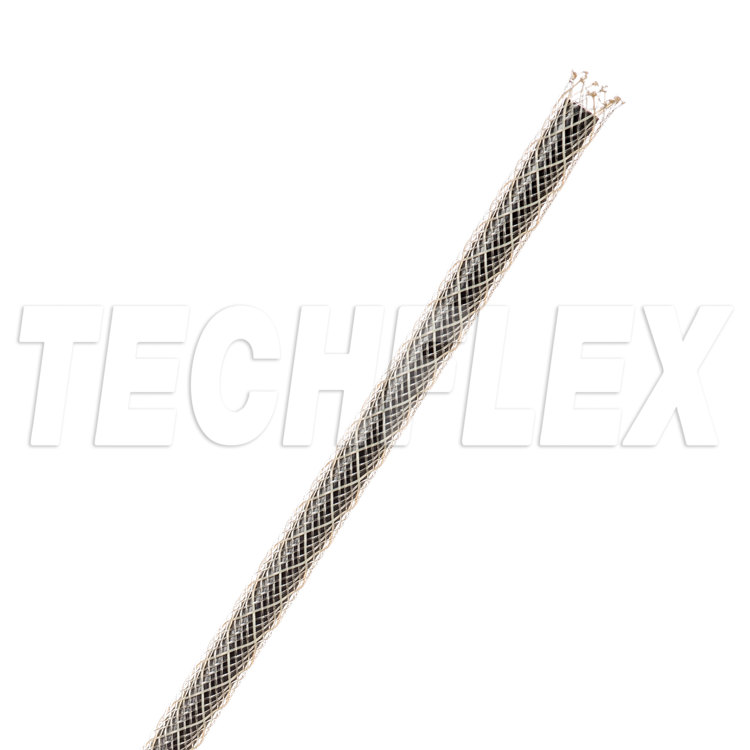

PKRY0.13
|
3,2 mm
|
2,4 - 6,4 mm
|
68,6 m
|
304,9 m
|
|
PKRY0.25
|
6,4 mm
|
2,8 - 3,8 mm
|
61,0 m
|
304,9 m
|
|
PKRY0.38
|
9,5 mm
|
4,8 - 19,1 mm
|
38,1 m
|
152,4 m
|
|
PKRY0.50
|
12,7 mm
|
6,4 - 22,2 mm
|
30,5 m
|
152,4 m
|
|
PKRY0.75
|
19,1 mm
|
6,4 - 22,2 mm
|
22,9 m
|
76,2 m
|
|
PKRY1.25
|
31,8 mm
|
15,9 - 44,5 mm
|
15,2 m
|
76,2 m
|
|
PKRY1.75
|
44,5 mm
|
19,1 - 55,5 mm
|
15,2 m
|
76,2 m
|
