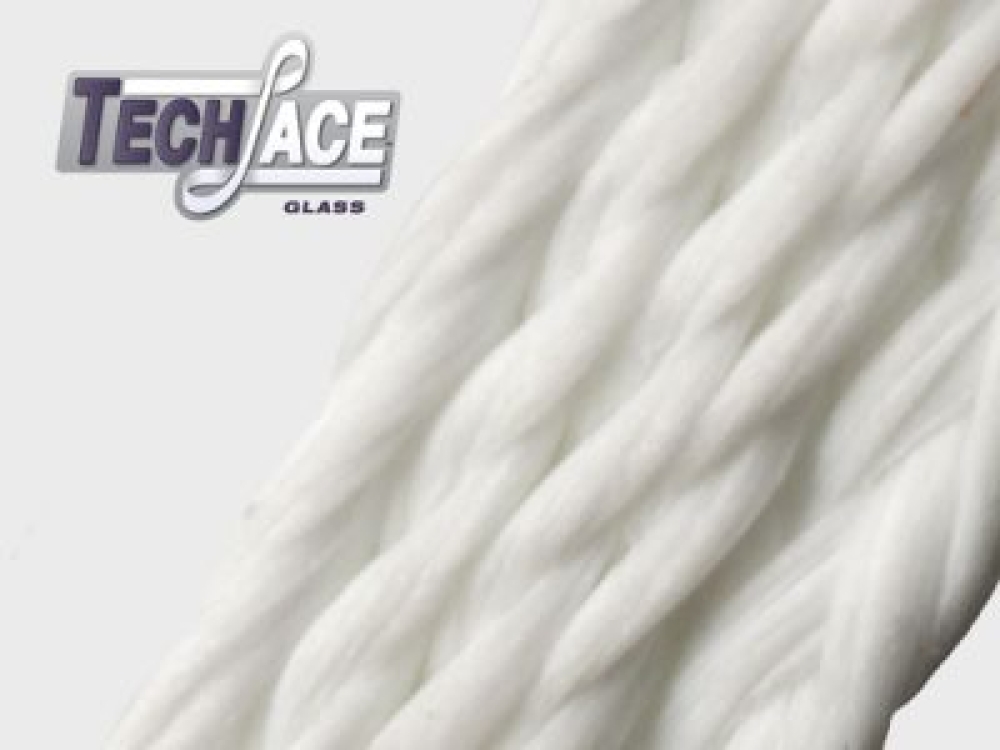

A-A-52083 Type 4 - Braided Fiberglass Lacing Tape
- Extremely high temperature performance
- Very low elongation
- Minimal abrasion from fiber to fiber (yarn pre-treated with TFE fluorocarbon)
- Made of electrical glass with continuous filament (E-glass)
- Available colors: Natural (NT)
- Heat resistance: -55°C to 404°C; melting point: 1150°C
- Coatings: D-TFE fluorocarbon
- Mil Spec A-A-52083 / MIL-T-43435 TYPE IV
Lasts longer than cable ties! Cable ties turn brittle and degrade over time due to environmental exposure and loss of plasticizers. A roll of lacing tape can manage any size cable bundle, from a couple of 22AWG wires to a fistful of heavy power cables.
Cable ties leave a sharp edge where the tail was cut off that can snag or get hung up. Some applications such as aerospace and aviation may specify laced harnesses as a design requirement. Lacing tape is ideal for lashing wires or cables to ladder bars, conduit and other wire management solutions.
Unlike cable ties, the insulation on wires bundled with lacing tape has less chance of cold flowing and shorting. No sharp edges to cut installer’s hands when reaching into a tightly packed wiring cavity. Lacing tape is available in a wide range of materials, sizes, and finishes to accommodate any engineering requirement.
|
Artikel-
nummer
|
Breite
min. / max.
|
Wand-
stärke
|
|
Bulk
Spool
|
| |
|
|
|
|
|
LT4-S4-FD
|
1,4 - 1,7 mm
|
0,3 - 0,5 mm
|
|
457,2 m
|
|
LT4-S3-FD
|
2,0 - 2,4 mm
|
0,3 - 0,5 mm
|
|
457,2 m
|
|
LT4-S2-FD
|
2,5 - 3,1 mm
|
0,3 - 0,5 mm
|
|
228,6 m
|
|
LT4-S1-FD
|
4,6 - 5,6 mm
|
0,3 - 0,5 mm
|
|
228,6 m
|
